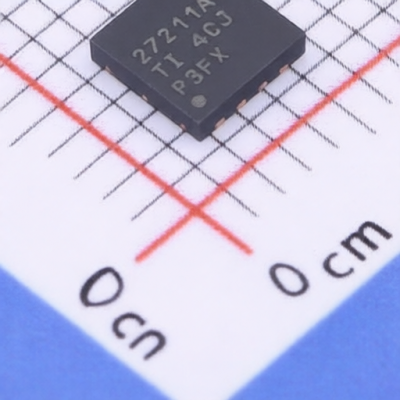

TI UCC27211ADRMR
Manufacturer:
TI
Mfr. Part #:
UCC27211ADRMR
Package:
VSON-8-EP(4x4)
Customer #:
Key Attributes:
High-frequency high-side and low-side drivers for boosting 120V with a peak current of 4A
Description:
Half-Bridge Gate Driver IC MOSFET VSON-8-EP(4x4)
Products Specifications
Manufacturer:
Package:
VSON-8-EP(4x4)
Input Logic Level - Low:
1.3V~1.9V
Peak Output Current(Sink):
4A
Quiescent Current(Iq):
85uA
Voltage - Supply:
8V~17V
Operating Temperature:
-40℃~+140℃
Driven Configuration:
Half-Bridge
Propagation Delay tpLH:
20ns
Propagation Delay tpHL:
16ns
Rise Time:
7.2ns
Features:
Under Voltage Protection
Current - Output High(IOH):
4A
Fall Time:
5.5ns
Load Type:
MOSFET
Input Logic Level - High:
1.9V~2.7V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
