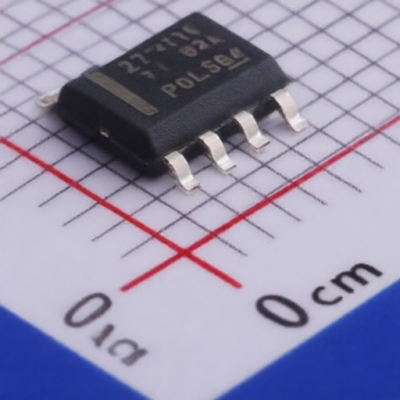

TI UCC27211AQDDARQ1
Manufacturer:
TI
Mfr. Part #:
UCC27211AQDDARQ1
Package:
SO-8
Customer #:
Key Attributes:
120-V Boot, 4-A Peak, High-Frequency High-Side and Low-Side Driver
Description:
8V~17V 4A SO-8 Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
SO-8
Input Logic Level - Low:
1.2V~1.9V
Peak Output Current(Sink):
4A
Quiescent Current(Iq):
170uA
Voltage - Supply:
8V~17V
Operating Temperature:
-40℃~+140℃@(Tj)
Driven Configuration:
Half-Bridge
Propagation Delay tpLH:
20ns
Propagation Delay tpHL:
16ns
Rise Time:
7.2ns
Features:
Under Voltage Protection
Current - Output High(IOH):
4A
Fall Time:
5.5ns
Load Type:
MOSFET
Input Logic Level - High:
1.7V~2.55V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
