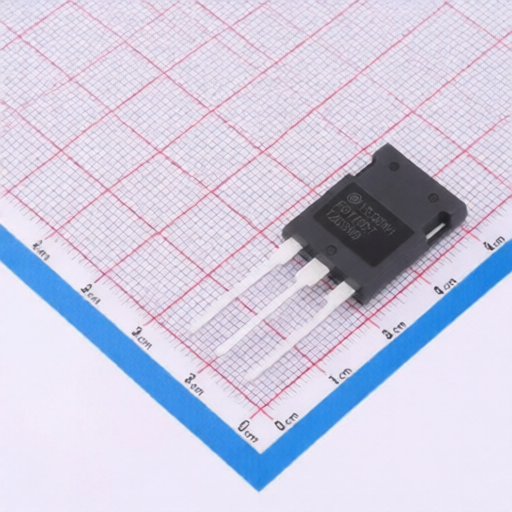

onsemi FGY100T120SWD
Manufacturer:
onsemi
Mfr. Part #:
FGY100T120SWD
Package:
TO-247-3LD
Customer #:
Key Attributes:
N-Channel, Field Stop VII IGBT, 1200 V, 100 A
Description:
866W 1.2kV FS (Field Stop) TO-247-3LD Single IGBTs RoHS
Datasheet:
onsemi FGY100T120SWD
Products Specifications
Manufacturer:
Package:
TO-247-3LD
Td(off):
168ns
Pd - Power Dissipation:
866W
Td(on):
46.4ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
41.4pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.6V@100mA
Gate Charge(Qg):
284nC@15V
Reverse Recovery Time(trr):
152ns
Switching Energy(Eoff):
1.6mJ
Turn-On Energy (Eon):
3.1mJ
Input Capacitance(Cies):
8.489nF
Pulsed Current- Forward(Ifm):
400A
Output Capacitance(Coes):
320pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
