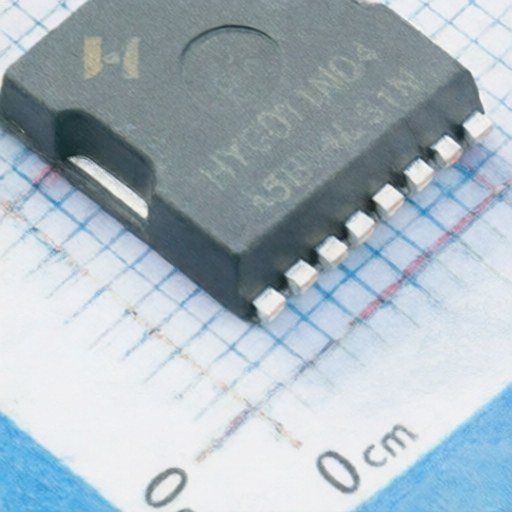

HUAYI HYG011N04LS1TA
Manufacturer:
HUAYI
Asian Brands
Mfr. Part #:
HYG011N04LS1TA
Package:
TOLL
Customer #:
Key Attributes:
MOSFET N-CH 40V 320A TOLL
Description:
N-Channel 40V 320A 250W Surface Mount TOLL
Datasheet:
HUAYI HYG011N04LS1TA
Products Specifications
Manufacturer:
Package:
TOLL
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
320A
Operating Temperature -:
-55℃~+175℃
RDS(on):
1.7mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1.8V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
63pF@25V
Number:
1 N-channel
Input Capacitance(Ciss):
5.87nF
Pd - Power Dissipation:
250W
Gate Charge(Qg):
92nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUAYI
323 Products
HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
