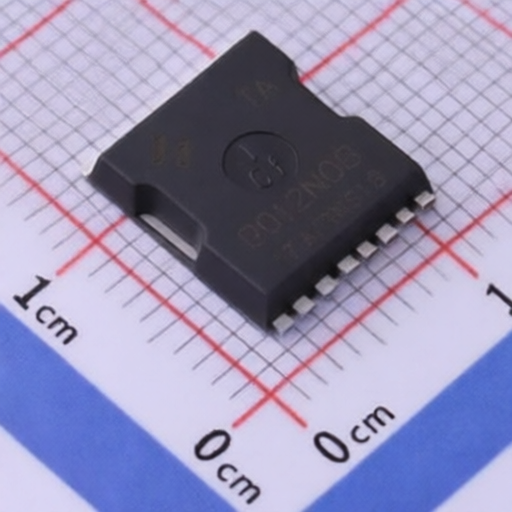

HUAYI HYG012N08NS1TA
Manufacturer:
HUAYI
Asian Brands
Mfr. Part #:
HYG012N08NS1TA
Package:
TOLL
Customer #:
Key Attributes:
MOSFET N-CH 80V 420A TOLL
Description:
N-Channel 80V 420A 428.5W Surface Mount TOLL
Datasheet:
HUAYI HYG012N08NS1TA
Products Specifications
Manufacturer:
Package:
TOLL
Drain to Source Voltage:
80V
Current - Continuous Drain(Id):
420A
RDS(on):
1.2mΩ@10V
Operating Temperature -:
-55℃~+175℃
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
470pF
Number:
1 N-channel
Input Capacitance(Ciss):
12.217nF
Pd - Power Dissipation:
428.5W
Gate Charge(Qg):
240nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1200 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUAYI
323 Products
HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
