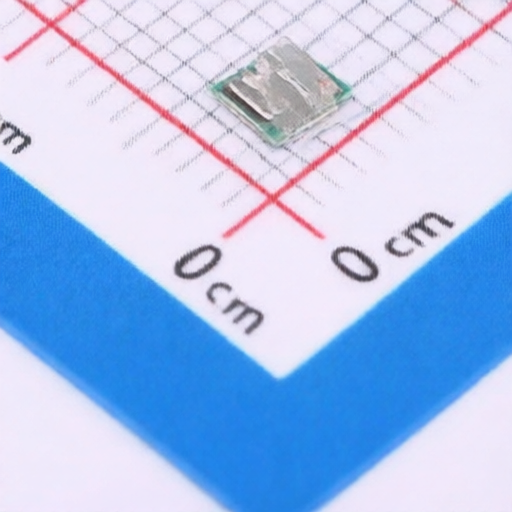

HUAWEI NAE03S03-B
Manufacturer:
HUAWEI
Asian Brands
Mfr. Part #:
NAE03S03-B
Package:
SMD
Customer #:
Key Attributes:
High Efficiency DC-DC Power Module
Description:
Buck Switching Regulator IC Adjustable 0.8V~3.7V 1 Output 3A SMD
Datasheet:
HUAWEI NAE03S03-B
Products Specifications
Category:
Manufacturer:
Package:
SMD
Operating Temperature:
-40℃~+85℃@(TA)
Function:
Buck
Frequency - Switching:
2.4MHz
Number of Outputs:
1
Output Type:
Adjustable
Topology:
Buck
Operating Voltage:
3V~5.75V
Switch tube (built-in/external):
Built-in
Output Current:
3A
Output Voltage:
800mV~3.7V
Quiescent Current:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
