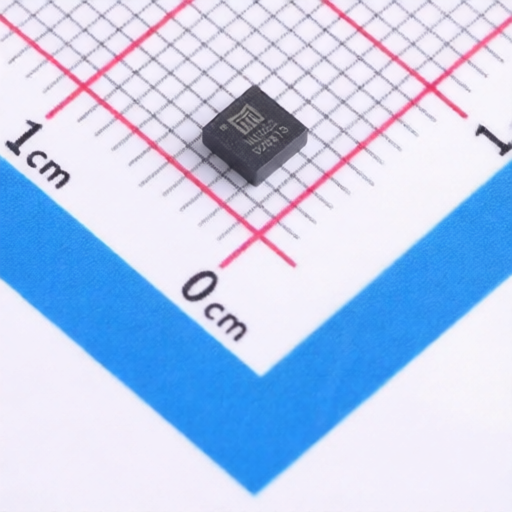

iModule M0522DLFA-C
Manufacturer:
iModule
Asian Brands
Mfr. Part #:
M0522DLFA-C
Package:
LGA-17(3x3.1)
Customer #:
Key Attributes:
6V Input, Dual 1.2A Synchronous Step-Down DC-DC Power SoC with Integrated Inductor
Description:
Buck 1.4MHz Adjustable 1A 600mV~6V LGA-17(3x3.1) Voltage Regulators - DC DC Switching Regulators RoHS
Datasheet:
iModule M0522DLFA-C
Products Specifications
Category:
Manufacturer:
Package:
LGA-17(3x3.1)
Operating Temperature:
-40℃~+125℃@(TJ)
Number of Outputs:
2
Function:
Buck
Frequency - Switching:
1.4MHz
Output Type:
Adjustable
Topology:
Buck
Operating Voltage:
2.4V~6V
Switch tube (built-in/external):
Built-in
Output Current:
1A
Output Voltage:
600mV~6V
Quiescent Current:
50uA;30uA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
iModule
16 Products
Shenzhen Woxin Semiconductor Technology Co., Ltd.
(hereinafter referred to as "iModule") was established in 2020 and is headquartered in Shenzhen. The company is committed to the research and development and sales of a new generation of high-power density magnetic integrated power chips. The products cover different voltage and current levels, mainly for 5G, industrial, medical and other high-end applications. iModule's mission is to make all onboard power designs simpler and will always strive for it.
