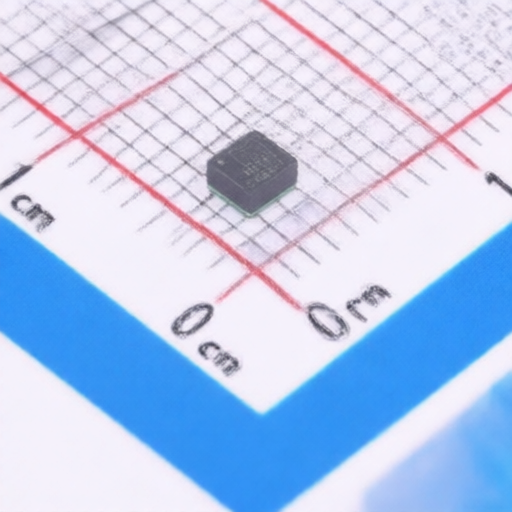

iModule M0503DLBGP
Manufacturer:
iModule
Asian Brands
Mfr. Part #:
M0503DLBGP
Package:
LGA-13(2.5x2.5)
Customer #:
Key Attributes:
6V Input, 3A Step-down DC-DC Power SoC with Integrated Inductor
Description:
Buck 2.5MHz Adjustable 800mV~5.5V 3A LGA-13(2.5x2.5) Voltage Regulators - DC DC Switching Regulators RoHS
Datasheet:
iModule M0503DLBGP
Products Specifications
Category:
Manufacturer:
Package:
LGA-13(2.5x2.5)
Operating Temperature:
-40℃~+125℃@(TJ)
Function:
Buck
Frequency - Switching:
2.5MHz
Number of Outputs:
1
Topology:
Buck
Output Type:
Adjustable
Operating Voltage:
2.5V~5.5V
Switch tube (built-in/external):
Built-in
Output Voltage:
800mV~5.5V
Output Current:
3A
Quiescent Current:
17uA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
iModule
16 Products
Shenzhen Woxin Semiconductor Technology Co., Ltd.
(hereinafter referred to as "iModule") was established in 2020 and is headquartered in Shenzhen. The company is committed to the research and development and sales of a new generation of high-power density magnetic integrated power chips. The products cover different voltage and current levels, mainly for 5G, industrial, medical and other high-end applications. iModule's mission is to make all onboard power designs simpler and will always strive for it.
