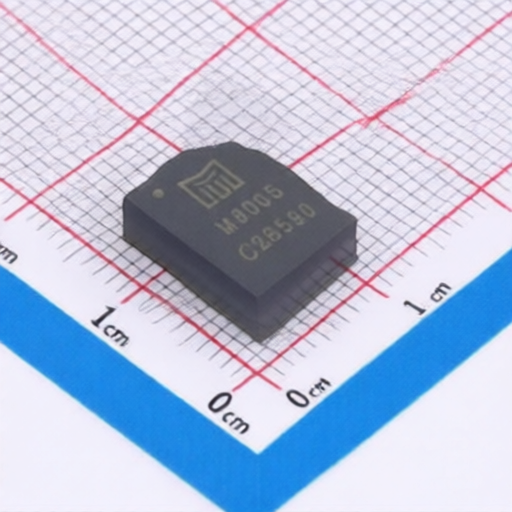

iModule M8005DLKK
Manufacturer:
iModule
Asian Brands
Mfr. Part #:
M8005DLKK
Package:
LGA-63
Customer #:
Key Attributes:
100V Input, 5A Step-down DC-DC Power SoC
Description:
500kHz Buck Adjustable 800mV~32V 5A LGA-63 Voltage Regulators - DC DC Switching Regulators RoHS
Datasheet:
iModule M8005DLKK
Products Specifications
Category:
Manufacturer:
Package:
LGA-63
Operating Temperature:
-40℃~+125℃@(TJ)
Frequency - Switching:
500kHz
Number of Outputs:
1
Function:
Buck
Output Type:
Adjustable
Topology:
Buck
Operating Voltage:
6V~80V
Switch tube (built-in/external):
Built-in
Output Voltage:
800mV~32V
Output Current:
5A
Quiescent Current:
2.1mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 210 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
iModule
16 Products
Shenzhen Woxin Semiconductor Technology Co., Ltd.
(hereinafter referred to as "iModule") was established in 2020 and is headquartered in Shenzhen. The company is committed to the research and development and sales of a new generation of high-power density magnetic integrated power chips. The products cover different voltage and current levels, mainly for 5G, industrial, medical and other high-end applications. iModule's mission is to make all onboard power designs simpler and will always strive for it.
