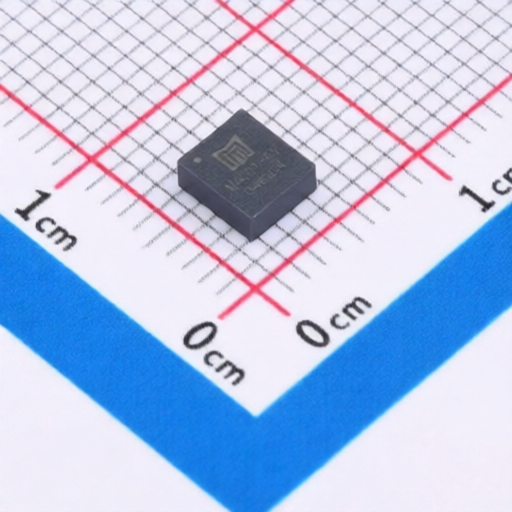

iModule M4001DLCC-5V
Manufacturer:
iModule
Asian Brands
Mfr. Part #:
M4001DLCC-5V
Package:
LGA-8(4x4.5)
Customer #:
Key Attributes:
48V Input, Positive/Negative Output, 0.7A Step Down DC-DC Power SoC with Integrated Inductor
Description:
1.6MHz Buck Fixed 5V 700mA LGA-8(4x4.5) Voltage Regulators - DC DC Switching Regulators RoHS
Datasheet:
iModule M4001DLCC-5V
Products Specifications
Category:
Manufacturer:
Package:
LGA-8(4x4.5)
Operating Temperature:
-40℃~+125℃@(TJ)
Frequency - Switching:
1.6MHz
Number of Outputs:
1
Function:
Buck
Topology:
Buck
Output Type:
Fixed
Operating Voltage:
4.5V~48V
Switch tube (built-in/external):
Built-in
Output Voltage:
5V
Output Current:
700mA
Quiescent Current:
166uA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
