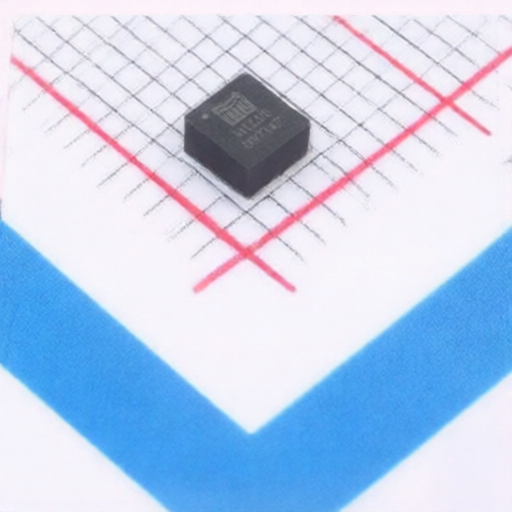

iModule M1206DLFF
Manufacturer:
iModule
Asian Brands
Mfr. Part #:
M1206DLFF
Package:
LGA-19(3mmx3.1mmx1.7mm)
Customer #:
Key Attributes:
16V Input, 6A Step-down DC-DC Power SoC
Description:
Buck Adjustable 600mV~13V 6A LGA-19(3mmx3.1mmx1.7mm) Voltage Regulators - DC DC Switching Regulators RoHS
Datasheet:
iModule M1206DLFF
Products Specifications
Category:
Manufacturer:
Package:
LGA-19(3mmx3.1mmx1.7mm)
Operating Temperature:
-40℃~+125℃@(TJ)
Frequency - Switching:
600kHz;1.2MHz
Number of Outputs:
1
Function:
Buck
Output Type:
Adjustable
Topology:
Buck
Operating Voltage:
4.5V~16V
Switch tube (built-in/external):
Built-in
Output Voltage:
600mV~13V
Output Current:
6A
Quiescent Current:
325uA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
iModule
16 Products
Shenzhen Woxin Semiconductor Technology Co., Ltd.
(hereinafter referred to as "iModule") was established in 2020 and is headquartered in Shenzhen. The company is committed to the research and development and sales of a new generation of high-power density magnetic integrated power chips. The products cover different voltage and current levels, mainly for 5G, industrial, medical and other high-end applications. iModule's mission is to make all onboard power designs simpler and will always strive for it.
