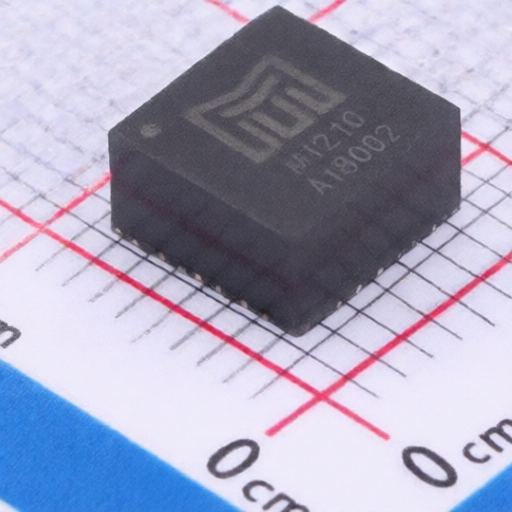

iModule M1210DQEE
Manufacturer:
iModule
Asian Brands
Mfr. Part #:
M1210DQEE
Package:
QFN-28(7x7)
Customer #:
Key Attributes:
16V Input, 10A Step Down DC-DC Power SoC
Description:
Buck Adjustable 600mV~5.5V 10A QFN-28(7x7) Voltage Regulators - DC DC Switching Regulators RoHS
Datasheet:
iModule M1210DQEE
Products Specifications
Category:
Manufacturer:
Package:
QFN-28(7x7)
Operating Temperature:
-40℃~+125℃@(TJ)
Frequency - Switching:
600kHz;800kHz;1MHz
Number of Outputs:
1
Function:
Buck
Topology:
Buck
Output Type:
Adjustable
Operating Voltage:
4V~16V
Switch tube (built-in/external):
Built-in
Output Voltage:
600mV~5.5V
Output Current:
10A
Quiescent Current:
850uA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
iModule
16 Products
Shenzhen Woxin Semiconductor Technology Co., Ltd.
(hereinafter referred to as "iModule") was established in 2020 and is headquartered in Shenzhen. The company is committed to the research and development and sales of a new generation of high-power density magnetic integrated power chips. The products cover different voltage and current levels, mainly for 5G, industrial, medical and other high-end applications. iModule's mission is to make all onboard power designs simpler and will always strive for it.
