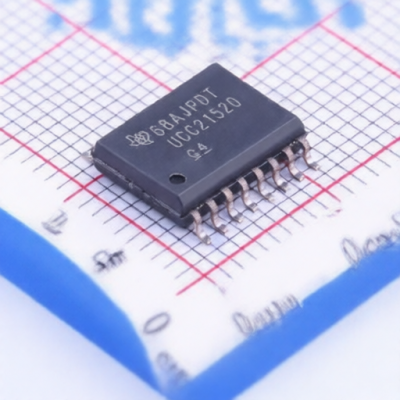

TI UCC21520DW

TI UCC21520DW

Name: TI UCC21520DW
Brand: TI

Manufacturer: TI

Mfr. Part #: UCC21520DW

Package: SOIC-16-300mil

Customer #:

Key Attributes: Isolated Dual-Channel Gate Driver

Description: Half-Bridge 4A 6A SOIC-16-300mil Isolators - Gate Drivers RoHS

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

Package:

SOIC-16-300mil

Driven Configuration:

Half-Bridge

Operating Temperature:

-40℃~+125℃@(Ta)

Isolation voltage(Vrms):

5700

Load Type:

MOSFET;IGBT

Current - Output High(IOH):

Voltage - Supply:

9.2V~25V;3V~18V

CMTI(kV/us):

100kV/us

Number of Channels:

Current - Output Low(IOL):

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	40
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8542399000
USHTS	8542390001
TARIC	8542399000
CAHTS	8542390000
BRHTS	85423999
INHTS	85423900
MXHTS	8542.39.99
