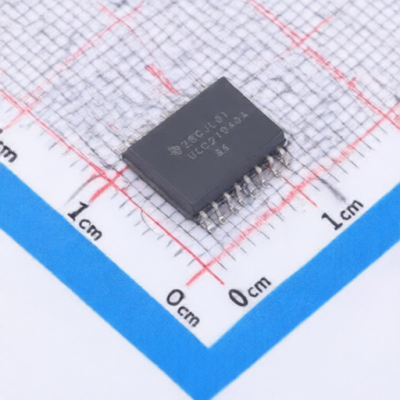

TI UCC21540ADWR

TI UCC21540ADWR

Name: TI UCC21540ADWR
Brand: TI

Manufacturer: TI

Mfr. Part #: UCC21540ADWR

Package: SOIC-16-300mil

Customer #:

Key Attributes: Reinforced Isolation Dual-Channel Gate Driver With 3.3-mm Channel-to-Channel Spacing Option

Description: Half-Bridge 4A 16ns 12ns 6A SOIC-16-300mil Isolators - Gate Drivers RoHS

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

Package:

SOIC-16-300mil

Driven Configuration:

Half-Bridge

Operating Temperature:

-40℃~+125℃@(Ta)

Isolation voltage(Vrms):

5700

Input Logic Level - High:

1.6V~2V

Current - Output High(IOH):

Rise Time:

16ns

Voltage - Supply:

3V~5.5V;6V~18V

Fall Time:

12ns

Number of Channels:

Current - Output Low(IOL):

Quiescent Current:

2000uA

Propagation Delay(tpd):

28ns;28ns

Load Type:

IGBT;MOSFET

Input Logic Level - Low:

0.8V~1.25V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	2000
Sales Unit	Piece
