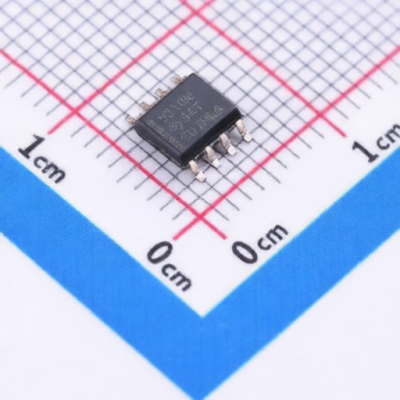

TI UCC5310MCDR
Manufacturer:
TI
Mfr. Part #:
UCC5310MCDR
Package:
SOIC-8
Customer #:
Key Attributes:
Single-channel isolated gate driver
Description:
2.4A 28ns 26ns 1.1A SOIC-8 Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SOIC-8
Operating Temperature:
-40℃~+125℃@(Ta)
Propagation Delay(tpd):
75ns;75ns
Isolation voltage(Vrms):
3000
Load Type:
MOSFET;IGBT
Current - Output High(IOH):
2.4A
Rise Time:
28ns
Voltage - Supply:
13.2V~33V;3V~15V
Fall Time:
26ns
CMTI(kV/us):
100kV/us
Number of Channels:
1
Current - Output Low(IOL):
1.1A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
