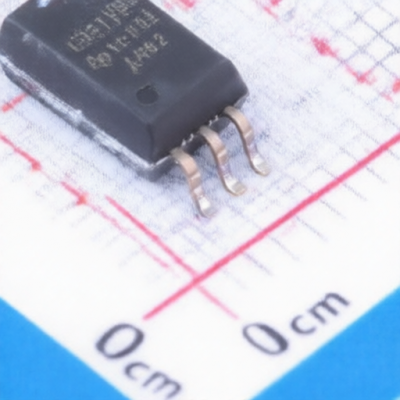

TI UCC23313BQDWYRQ1
Manufacturer:
TI
Mfr. Part #:
UCC23313BQDWYRQ1
Package:
SOIC-6-4.7mm
Customer #:
Key Attributes:
Single-channel isolated gate driver
Description:
4.5A 28ns 10V~33V 25ns 5.3A SOIC-6-4.7mm Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SOIC-6-4.7mm
Operating Temperature:
-40℃~+150℃@(Tj)
Isolation voltage(Vrms):
3750
Propagation Delay(tpd):
105ns;105ns
Load Type:
IGBT;MOSFET
Current - Output High(IOH):
4.5A
Rise Time:
28ns
Voltage - Supply:
10V~33V
Fall Time:
25ns
CMTI(kV/us):
150kV/us
Number of Channels:
1
Current - Output Low(IOL):
5.3A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 850 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
