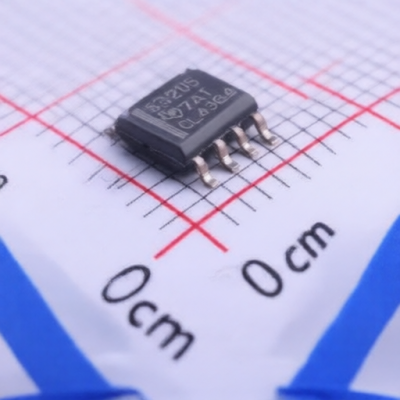

TI UCC5320SCDR
Manufacturer:
TI
Mfr. Part #:
UCC5320SCDR
Package:
SOIC-8
Customer #:
Key Attributes:
Single-channel isolated gate driver
Description:
2.4A 28ns 25ns 2.2A SOIC-8 Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SOIC-8
Quiescent Current:
2400uA
Operating Temperature:
-40℃~+125℃@(Ta)
Propagation Delay(tpd):
75ns;72ns
Isolation voltage(Vrms):
3000
Current - Output High(IOH):
2.4A
Rise Time:
28ns
Voltage - Supply:
13.2V~33V;3V~15V
Fall Time:
25ns
CMTI(kV/us):
100kV/us
Number of Channels:
1
Current - Output Low(IOL):
2.2A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
