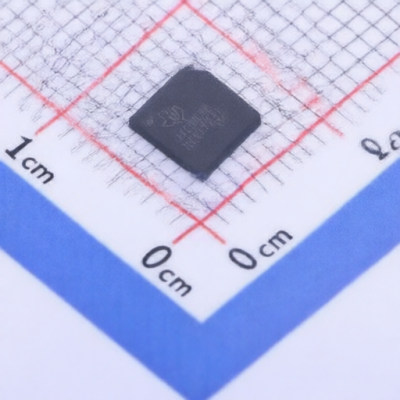

TI UCC21225ANPLR
Manufacturer:
TI
Mfr. Part #:
UCC21225ANPLR
Package:
VLGA-13(5x5)
Customer #:
Key Attributes:
Isolated dual-channel gate driver
Description:
4A 16ns 12ns 6A VLGA-13(5x5) Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
VLGA-13(5x5)
Driven Configuration:
Low Side;High Side;Half-Bridge
Operating Temperature:
-40℃~+130℃@(Tj)
Isolation voltage(Vrms):
2500
Input Logic Level - High:
1.6V~2V
Current - Output High(IOH):
4A
Rise Time:
16ns
Voltage - Supply:
3V~18V;6.5V~25V
Fall Time:
12ns
CMTI(kV/us):
100kV/us
Number of Channels:
2
Current - Output Low(IOL):
6A
Quiescent Current:
2mA
Propagation Delay(tpd):
30ns;30ns
Input Logic Level - Low:
0.8V~1.2V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
