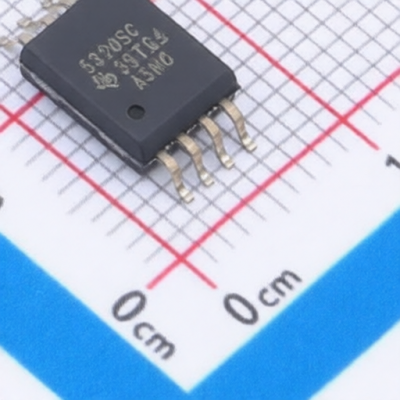

TI UCC5320SCDWVR

TI UCC5320SCDWVR

Name: TI UCC5320SCDWVR
Brand: TI

Manufacturer: TI

Mfr. Part #: UCC5320SCDWVR

Package: SOIC-8-300mil

Customer #:

Key Attributes: Single-channel isolated gate driver

Description: 28ns 25ns SOIC-8-300mil Isolators - Gate Drivers RoHS

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

Package:

SOIC-8-300mil

Quiescent Current:

1670uA

Operating Temperature:

-40℃~+125℃@(Ta)

Propagation Delay(tpd):

75ns;72ns

Isolation voltage(Vrms):

5000

Load Type:

MOSFET;IGBT

Rise Time:

28ns

Voltage - Supply:

13.2V~33V;3V~15V

Fall Time:

25ns

CMTI(kV/us):

100kV/us

Number of Channels:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece

Get Best Price

Inquiry

Negotiate

Payment

Shipping

26911 Products

International Brand

Texas Instruments Incorporated designs and manufactures analog technologies, digital signal processing (DSP) and microcontroller (MCU) semiconductors. TI is a leader in semiconductor solutions for analog and digital embedded and applications processing. A global semiconductor company, TI innovates through design, sales and manufacturing operations in more than 30 countries.
