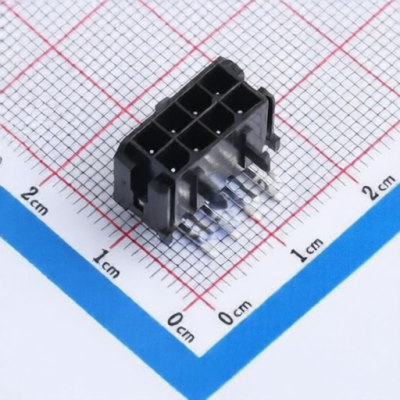

XFCN M3025R-2x4P
Manufacturer:
XFCN
Asian Brands
Mfr. Part #:
M3025R-2x4P
Package:
Through Hole,Right Angle,P=3mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 8POS 3mm
Description:
Connector Header 8 position 3mm Pitch 5A Right Angle -25℃~+85℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3mm
Y-Width of Bottom Edge on Board:
12.9mm
Reference Series:
-
Pins Structure:
2x4P
Contact Material:
Brass;Glass-Fiber Reinforced PA66
Color:
Black
Flame Retardant Rating:
UL94V-0
Number of Rows:
2
Mounting Type:
Right Angle
Pitch:
3mm
Number of PINs:
8P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
4
Contact Plating:
Tin
Current Rating:
5A
Voltage Rating (Max):
250V
Z-Height of the Board:
6.85mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 6 |
| Multiple | 6 |
| Standard Packaging | 216 |
| Sales Unit | Piece |
