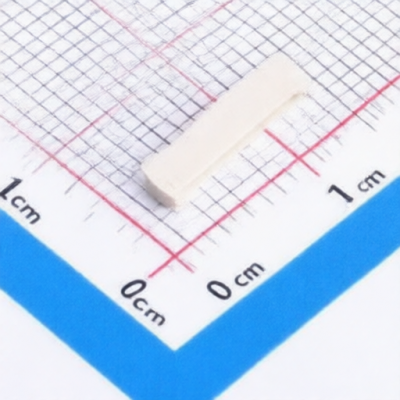

XFCN M0800RS-12-GN
Manufacturer:
XFCN
Asian Brands
Mfr. Part #:
M0800RS-12-GN
Package:
SMD,P=0.8mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 12POS 0.8mm
Description:
Connector Header 12 position 0.8mm Pitch Surface Mount, Right Angle
Products Specifications
Manufacturer:
Package:
SMD,P=0.8mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
2.7mm
Reference Series:
-
Pins Structure:
1x12P
Contact Material:
Phosphor Bronze
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Surface Mount, Right Angle
Pitch:
0.8mm
Number of PINs:
12P
Operating Temperature:
-
Number of PINs Per Row:
12
Current Rating:
-
Z-Height of the Board:
1.7mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3500 |
| Sales Unit | Piece |
