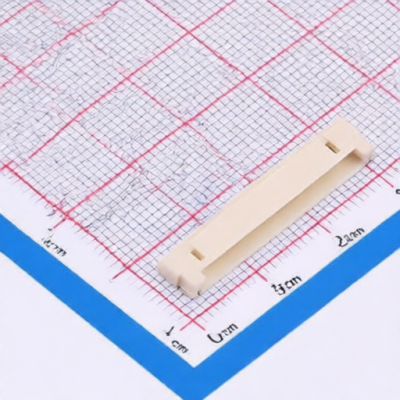

XFCN M1255RS-20P
Manufacturer:
XFCN
Asian Brands
Mfr. Part #:
M1255RS-20P
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 20POS 1.25mm
Description:
Connector Header 20 position 1.25mm Pitch 1A Surface Mount, Right Angle -25℃~+85℃
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
5.7mm
Number of Rows:
1
Pins Structure:
1x20P
Reference Series:
-
Mounting Type:
Surface Mount, Right Angle
Pitch:
1.25mm
Number of PINs:
20P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
20
Current Rating:
1A
Voltage Rating (Max):
150V
Z-Height of the Board:
2.6mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
