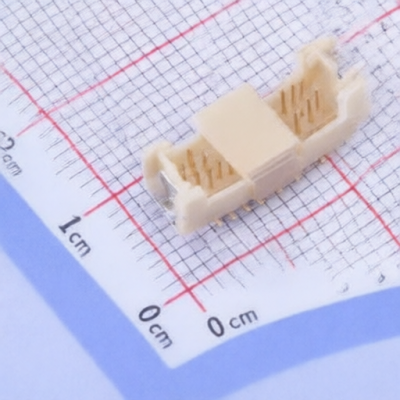

XFCN M1254VS-2x10-9T
Manufacturer:
XFCN
Mfr. Part #:
M1254VS-2x10-9T
Package:
SMD,P=1.25mm
Customer #:
Description:
Connector Header 20 position 1.25mm Pitch 1A Surface Mount,Vertical -25℃~+85℃
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Y-Width of Bottom Edge on Board:
6.85mm
Pins Structure:
2x10P
Reference Series:
-
Contact Material:
PA9T;Phosphor Bronze
Flame Retardant Rating:
UL94V-0
Number of Rows:
2
Mounting Type:
Surface Mount,Vertical
Pitch:
1.25mm
Number of PINs:
20P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
10
Current Rating:
1A
Voltage Rating (Max):
150V
Z-Height of the Board:
4.8mm
Row Spacing:
-
Get Best Price
Inquiry
Negotiate
Payment
Shipping
XFCN
1745 Products
XFCN Connectors Co., Ltd.
(hereinafter referred to as "XFCN") was founded in 2003 and is dedicated to the design, development, production, and sales of various electronic connectors and wiring harnesses. Through years of reform, innovation, and R&D, many of its products have received certifications from UL, CSA, TUV, and have also obtained invention patents. XFCN boasts a comprehensive design and development management system, along with precision mold manufacturing, high-speed continuous stamping, plastic molding, and automation equipment. It has also introduced high-precision experimental equipment and measuring instruments. Committed to technological innovation, it continuously launches high-tech and high-quality products that meet environmental protection standards such as RoHS, REACH, and halogen-free. XFCN's adherence to the ISO quality assurance system has positioned us as an excellent manufacturer of connectors.
