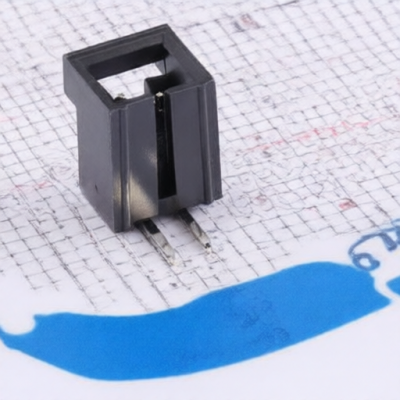

XFCN M2553R-02P
Manufacturer:
XFCN
Asian Brands
Mfr. Part #:
M2553R-02P
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 2POS 2.54mm
Description:
Connector Header 2 position 2.54mm Pitch 5A Right Angle -25℃~+85℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Y-Width of Bottom Edge on Board:
13.5mm
Pins Structure:
1x2P
Reference Series:
-
Contact Material:
Brass;Glass-Fiber Reinforced PA66
Color:
Black
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Right Angle
Pitch:
2.54mm
Number of PINs:
2P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
2
Contact Plating:
Gold
Current Rating:
5A
Voltage Rating (Max):
250V
Z-Height of the Board:
7mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
