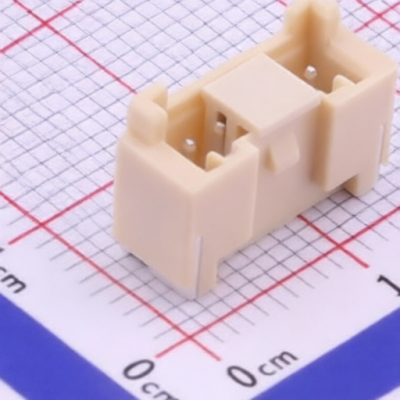

XFCN M2029VS-05P
Manufacturer:
XFCN
Asian Brands
Mfr. Part #:
M2029VS-05P
Package:
SMD,P=2mm
Customer #:
Key Attributes:
CONN HEADER SMD 5POS 2mm
Description:
Connector Header 5 position 2mm Pitch 3A Surface Mount,Vertical -25℃~+85℃
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Y-Width of Bottom Edge on Board:
7.1mm
Reference Series:
-
Pins Structure:
1x5P
Contact Material:
PA9T;Phosphor Bronze
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Surface Mount,Vertical
Pitch:
2mm
Number of PINs:
5P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
5
Current Rating:
3A
Voltage Rating (Max):
250V
Z-Height of the Board:
8.9mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 400 |
| Sales Unit | Piece |
