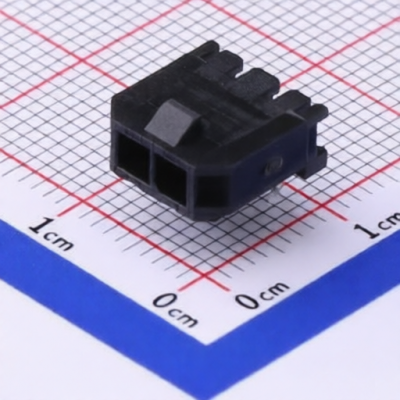

XFCN M3025R-1x2P
Manufacturer:
XFCN
Asian Brands
Mfr. Part #:
M3025R-1x2P
Package:
Through Hole,Right Angle,P=3mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 2POS 3mm
Description:
Connector Header 2 position 3mm Pitch 5A Right Angle -25℃~+85℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3mm
Y-Width of Bottom Edge on Board:
9.9mm
Pins Structure:
1x2P
Reference Series:
-
Contact Material:
Phosphor Bronze;PA66
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Right Angle
Pitch:
3mm
Number of PINs:
2P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
2
Current Rating:
5A
Voltage Rating (Max):
250V
Z-Height of the Board:
4.37mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 348 |
| Sales Unit | Piece |
