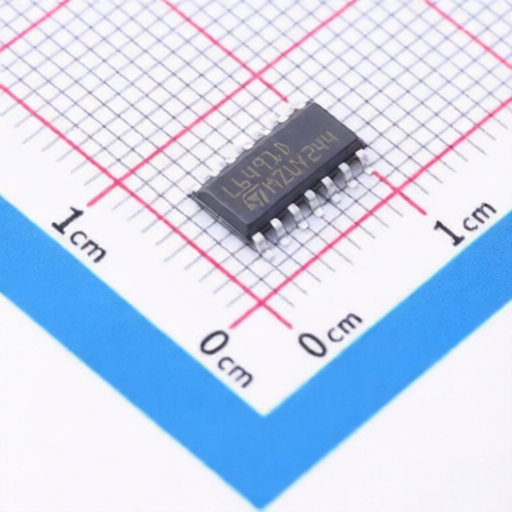

ST L6491DTR
Manufacturer:
ST
Mfr. Part #:
L6491DTR
Package:
SO-14
Customer #:
Key Attributes:
High voltage high and low-side 4 A gate driver
Description:
SO-14 Gate Drivers RoHS
Datasheet:
ST L6491DTR
Products Specifications
Manufacturer:
Package:
SO-14
Input Logic Level - Low:
950mV~1.45V
Peak Output Current(Source):
4A
Peak Output Current(Sink):
4A
Quiescent Current(Iq):
540uA
Input Voltage (Vin):
10V~20V
Driven Configuration:
Half-Bridge
Operating Temperature:
-40℃~+125℃@(Tj)
Propagation Delay tpLH:
85ns
Propagation Delay tpHL:
85ns
Rise Time:
15ns
Features:
Under Voltage Protection;Over Current Protection;Over Temperature Protection
Fall Time:
15ns
Load Type:
IGBT;MOSFET
Input Logic Level - High:
2V~2.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
