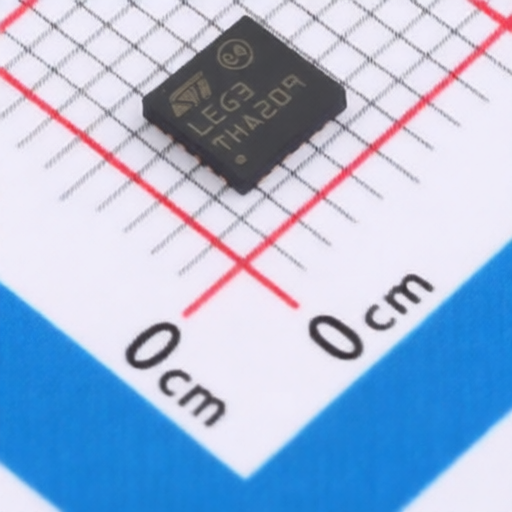

ST STDRIVE101
Manufacturer:
ST
Mfr. Part #:
STDRIVE101
Package:
VFQFPN-24(4x4)
Customer #:
Key Attributes:
Triple half-bridge gate driver
Description:
600mA 5.5V~75V VFQFPN-24(4x4) Gate Drivers RoHS
Datasheet:
ST STDRIVE101
Products Specifications
Manufacturer:
Package:
VFQFPN-24(4x4)
Input Logic Level - Low:
0V~800mV
Peak Output Current(Sink):
600mA
Features:
Under Voltage Protection;Over Current Protection;Over Temperature Protection
Current - Output High(IOH):
600mA
Quiescent Current(Iq):
1.7mA
Load Type:
MOSFET
Voltage - Supply:
5.5V~75V
Input Logic Level - High:
2V~5V
Operating Temperature:
-40℃~+125℃
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 490 |
| Sales Unit | Piece |
