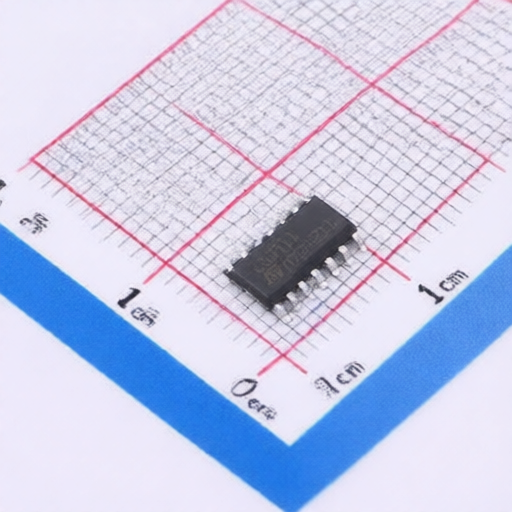

ST L6391DTR
Manufacturer:
ST
Mfr. Part #:
L6391DTR
Package:
SO-14
Customer #:
Key Attributes:
High voltage high and low-side driver
Description:
290mA 12.5V~20V SO-14 Gate Drivers RoHS
Datasheet:
ST L6391DTR
Products Specifications
Manufacturer:
Package:
SO-14
Input Logic Level - Low:
800mV~1.1V
Propagation Delay tpLH:
50ns
Propagation Delay tpHL:
50ns
Rise Time:
75ns
Peak Output Current(Sink):
430mA
Features:
Under Voltage Protection;Over Current Protection;Over Temperature Protection
Fall Time:
35ns
Current - Output High(IOH):
290mA
Load Type:
MOSFET;IGBT
Voltage - Supply:
12.5V~20V
Input Logic Level - High:
1.9V~2.25V
Operating Temperature:
-40℃~+125℃
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
