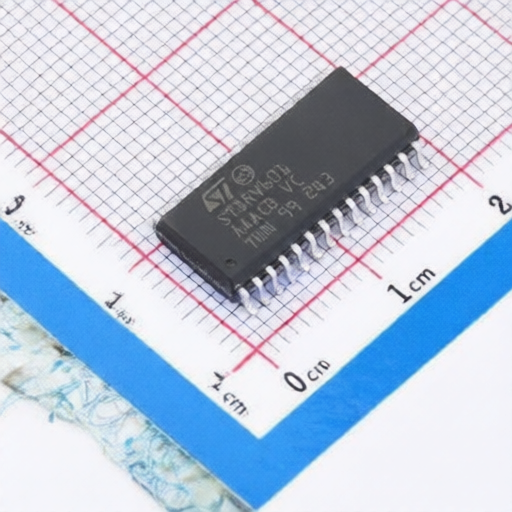

ST STDRIVE601TR
Manufacturer:
ST
Mfr. Part #:
STDRIVE601TR
Package:
SO-28
Customer #:
Key Attributes:
Triple half-bridge high-voltage gate driver
Description:
SO-28 Gate Drivers RoHS
Datasheet:
ST STDRIVE601TR
Products Specifications
Manufacturer:
Package:
SO-28
Input Logic Level - Low:
800mV~1.4V
Peak Output Current(Source):
200mA
Peak Output Current(Sink):
350mA
Quiescent Current(Iq):
950uA
Input Voltage (Vin):
9V~20V
Driven Configuration:
Half-Bridge
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
85ns
Propagation Delay tpHL:
85ns
Rise Time:
120ns
Features:
Under Voltage Protection;Over Current Protection;Over Temperature Protection
Fall Time:
50ns
Load Type:
MOSFET;IGBT
Input Logic Level - High:
1.8V~2.3V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
