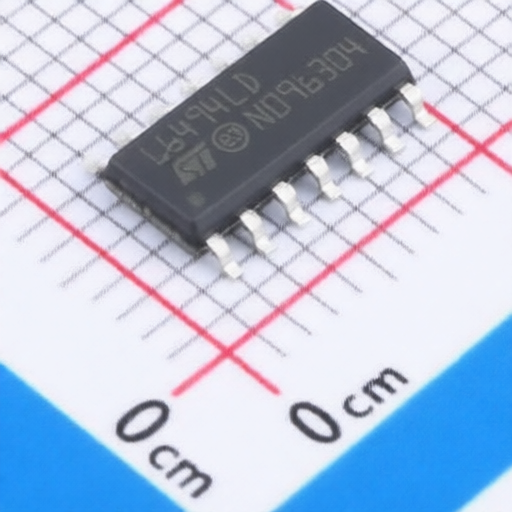

ST L6494LD
Manufacturer:
ST
Mfr. Part #:
L6494LD
Package:
SO-14
Customer #:
Key Attributes:
High voltage high and low-side 2 A gate driver
Description:
10V~20V 2A SO-14 Gate Drivers RoHS
Datasheet:
ST L6494LD
Products Specifications
Manufacturer:
Package:
SO-14
Input Logic Level - Low:
950mV~1.45V
Peak Output Current(Sink):
2.5A
Quiescent Current(Iq):
490uA
Voltage - Supply:
10V~20V
Operating Temperature:
-40℃~+125℃
Driven Configuration:
Half-Bridge
Propagation Delay tpLH:
85ns
Propagation Delay tpHL:
85ns
Rise Time:
25ns
Features:
Under Voltage Protection
Fall Time:
25ns
Current - Output High(IOH):
2A
Load Type:
MOSFET;IGBT
Input Logic Level - High:
2V~2.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
