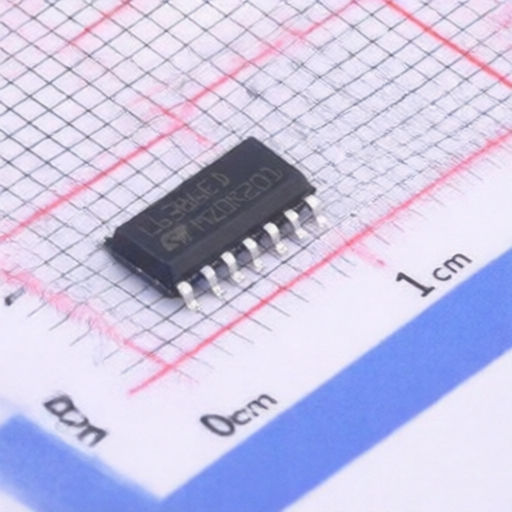

ST L6386ED013TR
Manufacturer:
ST
Mfr. Part #:
L6386ED013TR
Package:
SO-14
Customer #:
Key Attributes:
High voltage high and low-side driver
Description:
400mA 11.5V~17V SO-14 Gate Drivers RoHS
Datasheet:
ST L6386ED013TR
Products Specifications
Manufacturer:
Package:
SO-14
Propagation Delay tpLH:
110ns
Propagation Delay tpHL:
110ns
Peak Output Current(Sink):
650mA
Rise Time:
50ns
Features:
Under Voltage Protection;Over Current Protection
Fall Time:
30ns
Current - Output High(IOH):
400mA
Quiescent Current(Iq):
250uA
Load Type:
MOSFET;IGBT
Voltage - Supply:
11.5V~17V
Operating Temperature:
-45℃~+125℃
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
