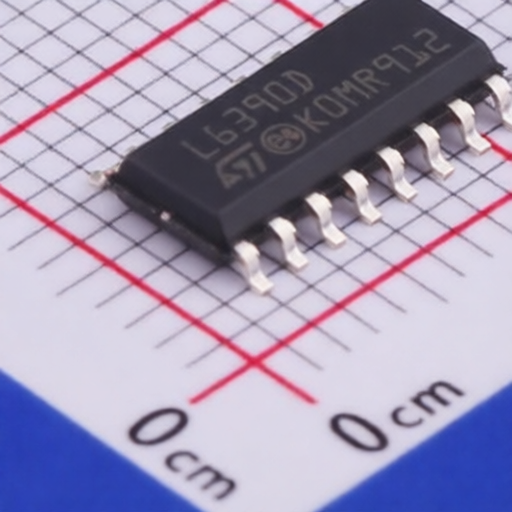

ST L6390DTR
Manufacturer:
ST
Mfr. Part #:
L6390DTR
Package:
SO-16
Customer #:
Key Attributes:
High voltage high/low-side driver
Description:
SO-16 Gate Drivers RoHS
Datasheet:
ST L6390DTR
Products Specifications
Manufacturer:
Package:
SO-16
Input Logic Level - Low:
800mV~1.1V
Peak Output Current(Source):
290mA
Peak Output Current(Sink):
430mA
Quiescent Current(Iq):
720uA
Input Voltage (Vin):
12.5V~20V
Driven Configuration:
Half-Bridge
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
125ns
Propagation Delay tpHL:
125ns
Rise Time:
75ns
Features:
Under Voltage Protection
Fall Time:
35ns
Load Type:
IGBT;MOSFET
Input Logic Level - High:
1.9V~2.25V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
