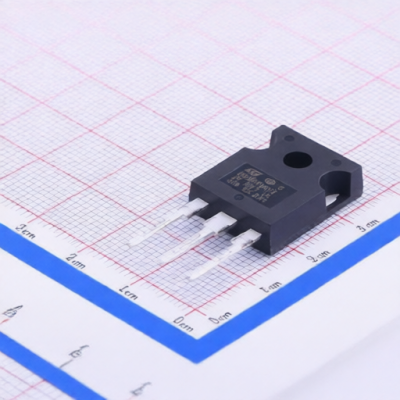

ST STGW30NC60KD
Manufacturer:
ST
Mfr. Part #:
STGW30NC60KD
Package:
TO-247
Customer #:
Key Attributes:
IGBT 600V 60A TO-247
Description:
IGBT 600V 60A 200W Through Hole TO-247
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
120ns
Pd - Power Dissipation:
200W
Td(on):
29ns
Operating Temperature:
-55℃~+150℃@(Tj)
Collector-Emitter Breakdown Voltage (Vces):
600V
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@250uA
Gate Charge(Qg):
96nC
Reverse Recovery Time(trr):
40ns
Switching Energy(Eoff):
435uJ
Turn-On Energy (Eon):
350uJ
Input Capacitance(Cies):
-
Pulsed Current- Forward(Ifm):
120A
Output Capacitance(Coes):
2170pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
