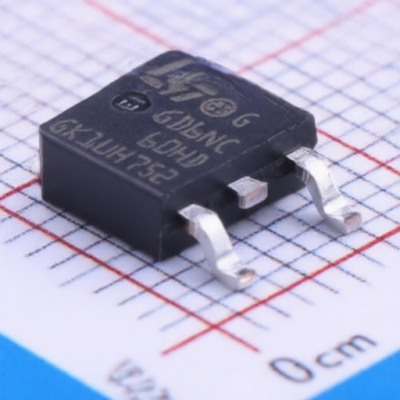

ST STGD6NC60HDT4
Manufacturer:
ST
Mfr. Part #:
STGD6NC60HDT4
Package:
DPAK
Customer #:
Key Attributes:
IGBT 600V 15A DPAK
Description:
IGBT 600V 15A 56W Surface Mount DPAK
Products Specifications
Manufacturer:
Package:
DPAK
Td(off):
76ns
Pd - Power Dissipation:
56W
Td(on):
12ns
Operating Temperature:
-55℃~+150℃@(Tj)
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
5.5pF
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.75V@250uA
Gate Charge(Qg):
13.6nC
Reverse Recovery Time(trr):
21ns
Switching Energy(Eoff):
68uJ
Turn-On Energy (Eon):
20uJ
Input Capacitance(Cies):
205pF
Output Capacitance(Coes):
32pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
