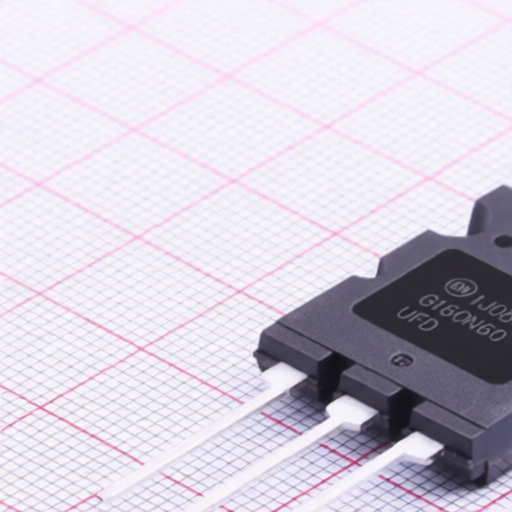

onsemi SGL160N60UFDTU
Manufacturer:
onsemi
Mfr. Part #:
SGL160N60UFDTU
Package:
TO-264-3
Customer #:
Key Attributes:
IGBT 600V 160A TO-264-3
Description:
IGBT 600V 160A 250W Through Hole TO-264-3
Datasheet:
onsemi SGL160N60UFDTU
Products Specifications
Manufacturer:
Package:
TO-264-3
Td(off):
90ns
Pd - Power Dissipation:
250W
Td(on):
40ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
200pF
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.5V@80mA
Gate Charge(Qg):
345nC
Operating Temperature:
-55℃~+150℃@(Tj)
Reverse Recovery Time(trr):
50ns
Switching Energy(Eoff):
1.76mJ
Turn-On Energy (Eon):
2.5mJ
Input Capacitance(Cies):
5nF
Pulsed Current- Forward(Ifm):
280A
Output Capacitance(Coes):
600pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
