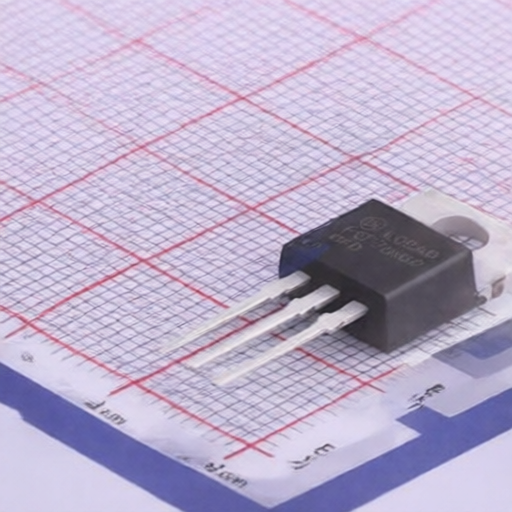

onsemi FGP20N60UFDTU
Manufacturer:
onsemi
Mfr. Part #:
FGP20N60UFDTU
Package:
TO-220
Customer #:
Key Attributes:
IGBT 600V 40A TO-220
Description:
IGBT FS (Field Stop) 600V 40A 165W Through Hole TO-220
Datasheet:
onsemi FGP20N60UFDTU
Products Specifications
Manufacturer:
Package:
TO-220
Pd - Power Dissipation:
165W
Td(off):
87ns
Td(on):
13ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
40pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4V@250uA
Operating Temperature:
-55℃~+150℃
Gate Charge(Qg):
63nC
Output Capacitance(Coes):
110pF
Reverse Recovery Time(trr):
35ns
Switching Energy(Eoff):
260uJ
Turn-On Energy (Eon):
380uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
