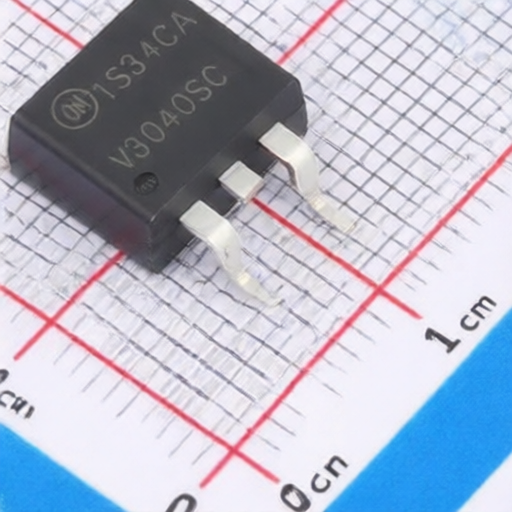

onsemi ISL9V3040S3ST-F085C
Manufacturer:
onsemi
Mfr. Part #:
ISL9V3040S3ST-F085C
Package:
D2PAK
Customer #:
Key Attributes:
IGBT 400V 21A D2PAK
Description:
IGBT 400V 21A 150W Surface Mount D2PAK
Datasheet:
onsemi ISL9V3040S3ST-F085C
Products Specifications
Manufacturer:
Package:
D2PAK
Td(off):
15us
Pd - Power Dissipation:
150W
Td(on):
4us
Collector-Emitter Breakdown Voltage (Vces):
400V
Input Capacitance(Cies):
-
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
1.3V@1mA
Gate Charge(Qg):
17nC@12V
Operating Temperature:
-55℃~+175℃@(Tj)
Reverse Recovery Time(trr):
2.1us
Turn-On Energy (Eon):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
