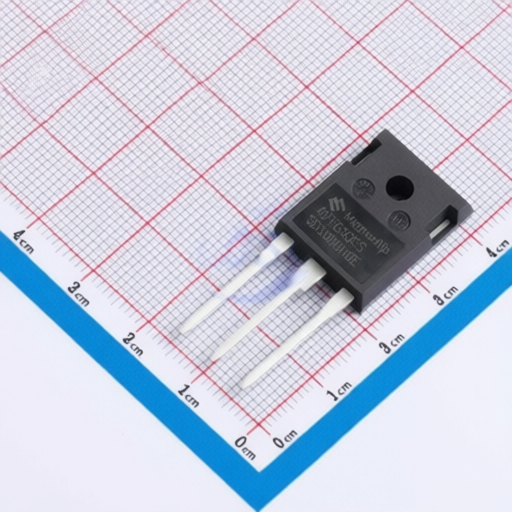

MagnaChip Semicon MBQ40T65QESTH
Manufacturer:
MagnaChip Semicon
Mfr. Part #:
MBQ40T65QESTH
Package:
TO-247
Customer #:
Key Attributes:
650V Field Stop IGBT
Description:
230W 650V FS (Field Stop) TO-247 Single IGBTs RoHS
Datasheet:
MagnaChip Semicon MBQ40T65QESTH
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
55ns
Pd - Power Dissipation:
230W
Td(on):
6ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
37pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.5V@40mA
Gate Charge(Qg):
60nC@15V
Operating Temperature:
-40℃~+175℃
Reverse Recovery Time(trr):
72ns
Switching Energy(Eoff):
400uJ
Turn-On Energy (Eon):
500uJ
Input Capacitance(Cies):
1.565nF
Pulsed Current- Forward(Ifm):
120A
Output Capacitance(Coes):
120pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
