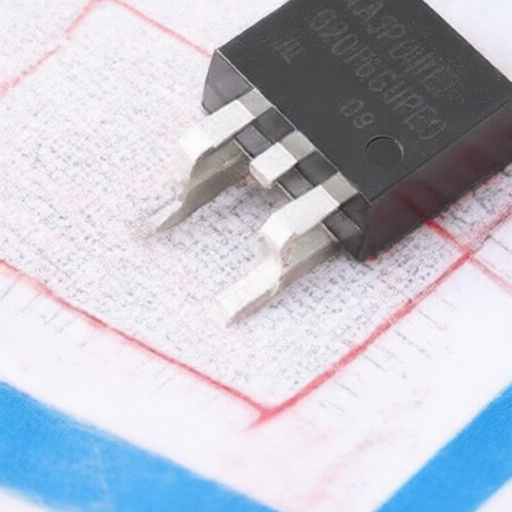

MASPOWER MSG20T65HPE0
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MSG20T65HPE0
Package:
TO-263
Customer #:
Key Attributes:
IGBT 650V 20A TO-263
Description:
IGBT 650V 20A Surface Mount TO-263
Datasheet:
MASPOWER MSG20T65HPE0
Products Specifications
Manufacturer:
Package:
TO-263
Td(off):
52ns
Pd - Power Dissipation:
162W
Td(on):
16ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
28.7pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@250uA
Gate Charge(Qg):
43.9nC@15V
Operating Temperature:
-55℃~+150℃
Reverse Recovery Time(trr):
254ns
Switching Energy(Eoff):
300uJ
Turn-On Energy (Eon):
790uJ
Input Capacitance(Cies):
1.5nF
Pulsed Current- Forward(Ifm):
80A
Output Capacitance(Coes):
128pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
