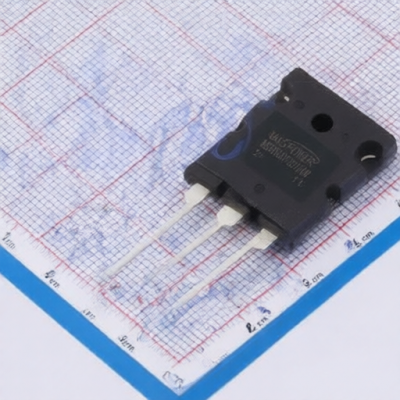

MASPOWER MSG100T120FQW
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MSG100T120FQW
Package:
TO-264
Customer #:
Key Attributes:
IGBT 1.2kV 100A TO-264
Description:
IGBT 1.2kV 100A Through Hole TO-264
Products Specifications
Manufacturer:
Package:
TO-264
Td(off):
282ns
Pd - Power Dissipation:
625W
Td(on):
34ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
290pF
Input Capacitance(Cies):
4.856nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.1V@2.6mA
Gate Charge(Qg):
370nC@15V
Pulsed Current- Forward(Ifm):
300A
Output Capacitance(Coes):
505pF
Reverse Recovery Time(trr):
370ns
Switching Energy(Eoff):
2.8mJ
Turn-On Energy (Eon):
6.4mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
