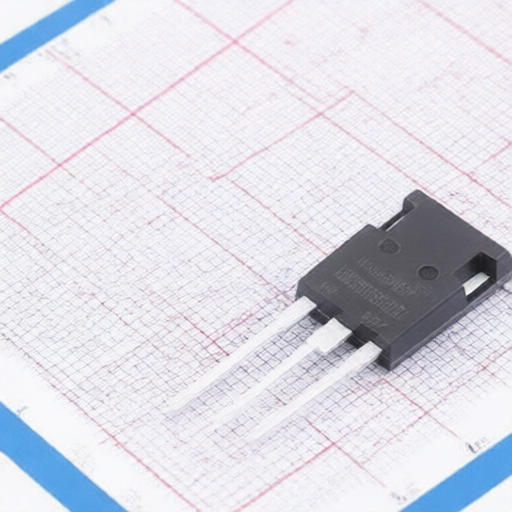

MASPOWER MSG160T65HLC1
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MSG160T65HLC1
Package:
TO-247plus
Customer #:
Key Attributes:
IGBT 650V 160A TO-247plus
Description:
IGBT 650V 160A Through Hole TO-247plus
Datasheet:
MASPOWER MSG160T65HLC1
Products Specifications
Manufacturer:
Package:
TO-247plus
Pd - Power Dissipation:
882W
Td(off):
98ns
Td(on):
53ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
150pF
Input Capacitance(Cies):
7.5nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.5V@0.6mA
Gate Charge(Qg):
235nC
Output Capacitance(Coes):
644pF
Reverse Recovery Time(trr):
132ns
Switching Energy(Eoff):
5.7mJ
Turn-On Energy (Eon):
12.4mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MASPOWER
255 Products
Shenzhen Maspower Semiconductor Co., Ltd.
(hereinafter referred to as "Maspower") was established in 2013 and has been focusing on the R&D, design and sales of semiconductor integrated circuits, power devices, MCUs and other products. It is headquartered in Shenzhen, China and has R&D centers in Shanghai, China. The company's main products are super junction MOSFET, low voltage MOSFET, high voltage MOSFET, NTP-IGBT, FS-IGBT, FRD, FRD MODULES, IC and MUC etc., which are widely used in welding equipment, industrial control, new energy, electric vehicle, power supply, medical equipment and other fields. Maspower carry out resource integration and innovative development in material preparation, chip design, manufacturing process, packaging and testing, drive applications, etc. on a global scale, covering all aspects of the industrial chain, and our products have reached a new level in the international field. Maspower mission is to optimize device performance and minimize system costs thro
