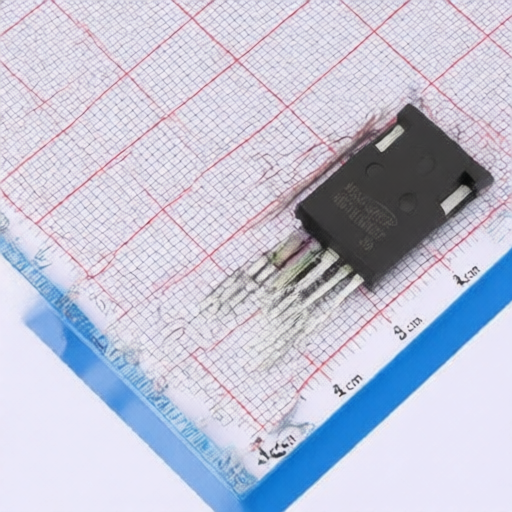

MASPOWER MSG75T65HFC6
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MSG75T65HFC6
Package:
TO-247-4L
Customer #:
Key Attributes:
IGBT 650V TO-247-4L
Description:
IGBT FS (Field Stop) 650V 625W Through Hole TO-247-4L
Datasheet:
MASPOWER MSG75T65HFC6
Products Specifications
Manufacturer:
Package:
TO-247-4L
Td(off):
95ns
Pd - Power Dissipation:
625W
Td(on):
26ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
63pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.5V@600uA
Gate Charge(Qg):
140nC@15V
Operating Temperature:
-55℃~+175℃
Reverse Recovery Time(trr):
49ns
Switching Energy(Eoff):
1.5mJ
Turn-On Energy (Eon):
2.8mJ
Input Capacitance(Cies):
2.65nF
Pulsed Current- Forward(Ifm):
300A
Output Capacitance(Coes):
320pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MASPOWER
255 Products
Shenzhen Maspower Semiconductor Co., Ltd.
(hereinafter referred to as "Maspower") was established in 2013 and has been focusing on the R&D, design and sales of semiconductor integrated circuits, power devices, MCUs and other products. It is headquartered in Shenzhen, China and has R&D centers in Shanghai, China. The company's main products are super junction MOSFET, low voltage MOSFET, high voltage MOSFET, NTP-IGBT, FS-IGBT, FRD, FRD MODULES, IC and MUC etc., which are widely used in welding equipment, industrial control, new energy, electric vehicle, power supply, medical equipment and other fields. Maspower carry out resource integration and innovative development in material preparation, chip design, manufacturing process, packaging and testing, drive applications, etc. on a global scale, covering all aspects of the industrial chain, and our products have reached a new level in the international field. Maspower mission is to optimize device performance and minimize system costs thro
