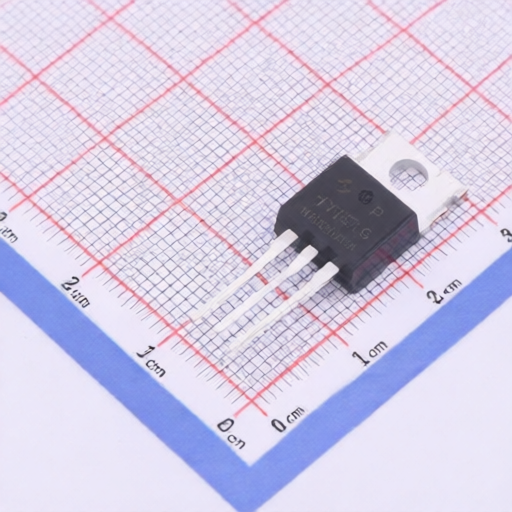

HUAYI HY1515P
Manufacturer:
HUAYI
Asian Brands
Mfr. Part #:
HY1515P
Package:
TO-220FB-3L
Customer #:
Key Attributes:
MOSFET N-CH 150V 50A TO-220FB-3L
Description:
N-Channel 150V 50A 180W Through Hole TO-220FB-3L
Datasheet:
HUAYI HY1515P
Products Specifications
Manufacturer:
Package:
TO-220FB-3L
Drain to Source Voltage:
150V
Current - Continuous Drain(Id):
50A
RDS(on):
28mΩ@10V,30A
Operating Temperature -:
-55℃~+175℃
Gate Threshold Voltage (Vgs(th)):
3.8V
Reverse Transfer Capacitance (Crss@Vds):
41pF
Number:
1 N-channel
Input Capacitance(Ciss):
2.447nF
Pd - Power Dissipation:
180W
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
