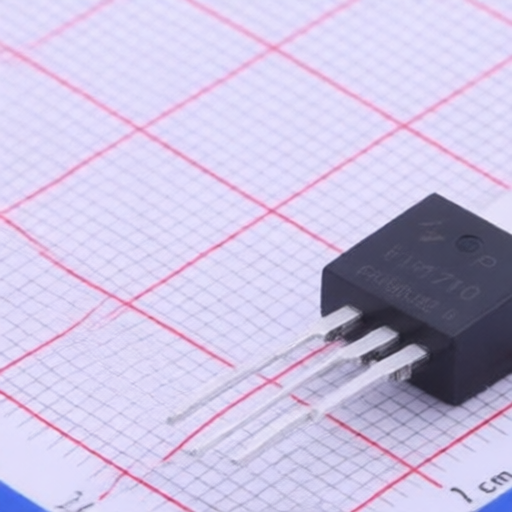

HUAYI HY1710P
Manufacturer:
HUAYI
Asian Brands
Mfr. Part #:
HY1710P
Package:
TO-220FB
Customer #:
Key Attributes:
MOSFET N-CH 100V 70A TO-220FB
Description:
N-Channel 100V 70A 150W Through Hole TO-220FB
Datasheet:
HUAYI HY1710P
Products Specifications
Manufacturer:
Package:
TO-220FB
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
70A
Operating Temperature -:
-55℃~+175℃
RDS(on):
18mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
190pF
Number:
1 N-channel
Output Capacitance(Coss):
273pF
Input Capacitance(Ciss):
4.2nF
Pd - Power Dissipation:
150W
Gate Charge(Qg):
94nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUAYI
323 Products
HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
