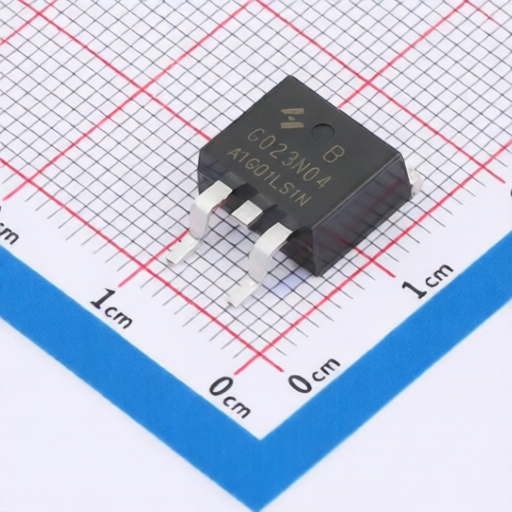

HUAYI HYG023N04LS1B
Manufacturer:
HUAYI
Asian Brands
Mfr. Part #:
HYG023N04LS1B
Package:
TO-263-2L
Customer #:
Key Attributes:
MOSFET N-CH 40V 170A TO-263-2L
Description:
N-Channel 40V 170A 150W Surface Mount TO-263-2L
Datasheet:
HUAYI HYG023N04LS1B
Products Specifications
Manufacturer:
Package:
TO-263-2L
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
170A
Operating Temperature -:
-55℃~+175℃
RDS(on):
3.5mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
45pF
Number:
1 N-channel
Output Capacitance(Coss):
809pF
Input Capacitance(Ciss):
4.032nF
Pd - Power Dissipation:
150W
Gate Charge(Qg):
58.7nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUAYI
323 Products
HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
