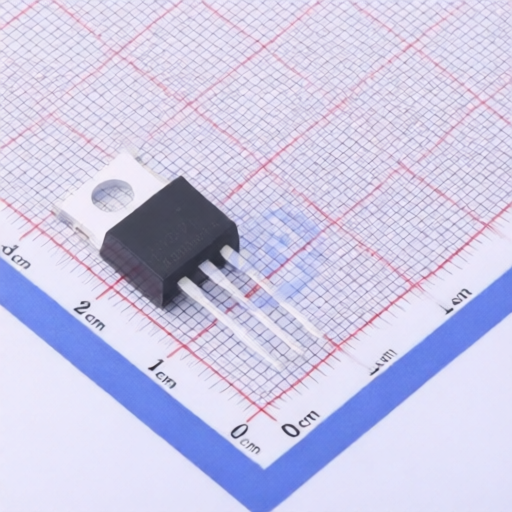

HUAYI HY3712P
Manufacturer:
HUAYI
Asian Brands
Mfr. Part #:
HY3712P
Package:
TO-220FB
Customer #:
Key Attributes:
MOSFET N-CH 125V 170A TO-220FB
Description:
N-Channel 125V 170A 339W Through Hole TO-220FB
Datasheet:
HUAYI HY3712P
Products Specifications
Manufacturer:
Package:
TO-220FB
Drain to Source Voltage:
125V
Current - Continuous Drain(Id):
170A
Operating Temperature -:
-55℃~+175℃@(Tj)
RDS(on):
7.5mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
509pF
Number:
1 N-channel
Output Capacitance(Coss):
980pF
Input Capacitance(Ciss):
8.162nF
Pd - Power Dissipation:
339W
Gate Charge(Qg):
189nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUAYI
323 Products
HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
