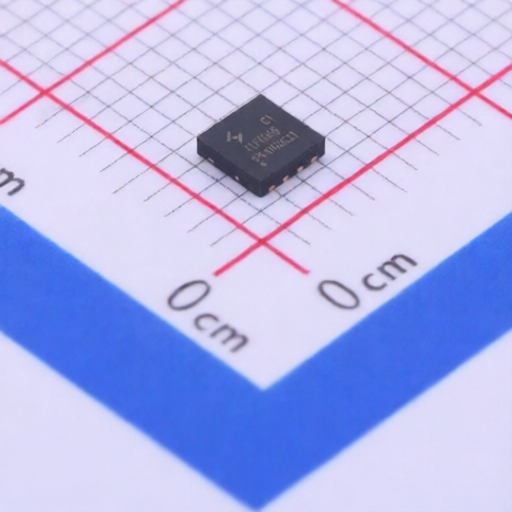

HUAYI HY1503C1
Manufacturer:
HUAYI
Asian Brands
Mfr. Part #:
HY1503C1
Package:
DFN3x3-8L
Customer #:
Key Attributes:
MOSFET N-CH 30V 34A DFN3x3-8L
Description:
N-Channel 30V 34A 17.8W Surface Mount DFN3x3-8L
Datasheet:
HUAYI HY1503C1
Products Specifications
Manufacturer:
Package:
DFN3x3-8L
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
34A
Operating Temperature -:
-55℃~+150℃
RDS(on):
12.5mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
70pF
Number:
1 N-channel
Output Capacitance(Coss):
150pF
Input Capacitance(Ciss):
680pF
Pd - Power Dissipation:
17.8W
Gate Charge(Qg):
14.6nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUAYI
323 Products
HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
