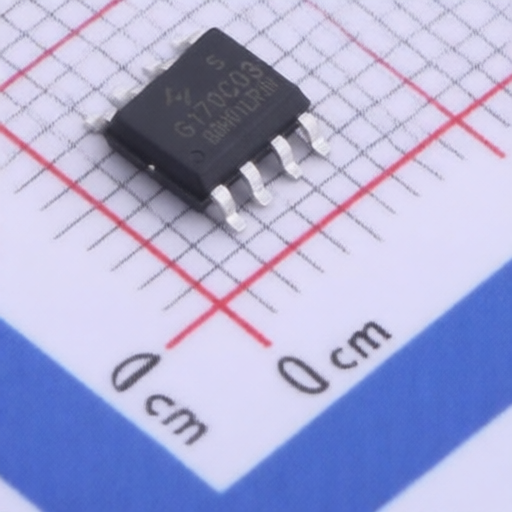

HUAYI HYG170C03LR1S
Manufacturer:
HUAYI
Asian Brands
Mfr. Part #:
HYG170C03LR1S
Package:
SOP-8
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 30V 9.5A SOP-8
Description:
N-Channel+P-Channel Array 30V 9.5A 3W Surface Mount SOP-8
Datasheet:
HUAYI HYG170C03LR1S
Products Specifications
Manufacturer:
Package:
SOP-8
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
9.5A
Operating Temperature -:
-55℃~+175℃
RDS(on):
30mΩ@10V
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
86pF
Number:
1 N-Channel + 1 P-Channel
Output Capacitance(Coss):
120pF
Input Capacitance(Ciss):
1.21nF
Pd - Power Dissipation:
3W
Gate Charge(Qg):
18.5nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUAYI
323 Products
HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
