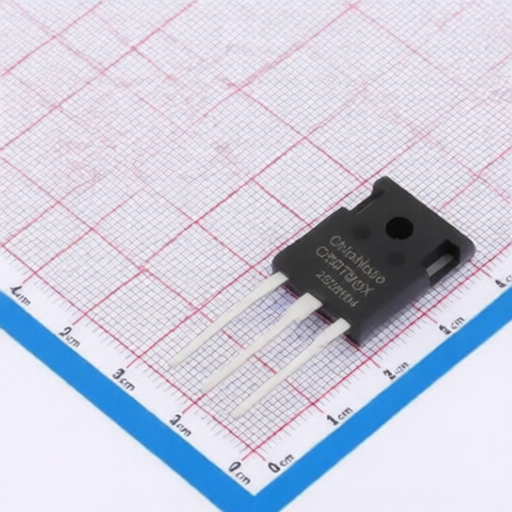

ChipNobo IRG4PF50WPBF-CN
Manufacturer:
ChipNobo
Asian Brands
Mfr. Part #:
IRG4PF50WPBF-CN
Package:
TO-247-3L
Customer #:
Description:
900V FS (Field Stop) TO-247-3L Single IGBTs RoHS
Datasheet:
ChipNobo IRG4PF50WPBF-CN
Products Specifications
Manufacturer:
Package:
TO-247-3L
Td(off):
173ns
Td(on):
80ns
Collector-Emitter Breakdown Voltage (Vces):
900V
Reverse Transfer Capacitance (Cres):
65pF
Input Capacitance(Cies):
9.467nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@250uA
Operating Temperature:
-40℃~+175℃
Pulsed Current- Forward(Ifm):
120A
Output Capacitance(Coes):
132pF
Reverse Recovery Time(trr):
37ns
Switching Energy(Eoff):
800uJ
Turn-On Energy (Eon):
2mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
